Fibre Optic Components

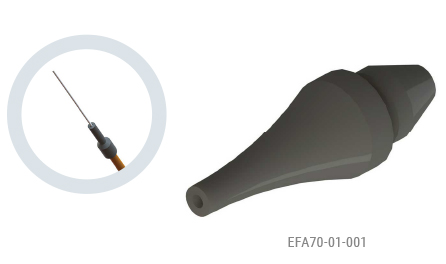

Fibre Boots

EFA70-01-001

These are used specifically for cables housed in cabinets, they protect the cable as it is inserted through drilled holes and when connections are needed between cables.

• Connections are needed between cables.

• Manufactured from TPE: RMS-185
• 900 Micron
• Overall Length 22.2 mm
• Thermoplastic Elastom
• Material Type RMS-185

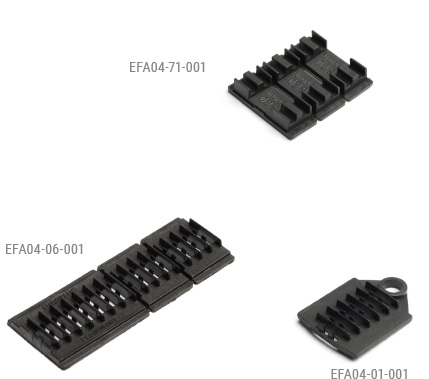

Fibre Clips

EFA04-XX-XXX

When a cable is coupled, clips are used to hold the coupling firmly so it doesn’t get damaged in any way, making installation easier and also allowing for the cables to be placed wherever they need to be. Fibre clips are frequently used in conjunction with array trays or separately with adhesive pads (RMS-143).

• Manufactured from UL 94 VO@ 0.4mm flame-retardant nylon
• Firmly hold a range of couplers, devices and WDMs in varying sizes
• Protects components from damage
• Easily mountable using supplied self-adhesive pads
• Can be moulded in high temperature or conductive plastic where ESD-compliancy is a requirement

Fibre Reels

EFA04-XX-XXX

Fibre reels are used to roll up any unwanted lengths of cable. Reels can accommodate bare to ruggedised fibre and be screw or adhesive pad mounted. Cable guides help make installation straightforward by offering a precise way to move the delicate cables. Other accessories available include strain relief boots through to fibre reel stand-offs and stacking pillars.

• UL94 V0 Nylon 6, RMS-390; Adhesive: RMS-143
• Board mountable using standoff EFA04 27 ASS
• Stackable using Stacking Pillar EFA04 53 ASS
• Type 1 can be broken apart into 4x90° bending control devices

Fibre Winding Reel

EFA04-67-ASS

• Winding reel type
• Colour black
• Full material Nylon 6
• Material Flammability Standard - UL 94 V-0
• Material Nylon
• Special Features (All) Two-Part Reel
• Number of Mounting Holes 1

Straight Fibre

EFA04-60-XXX

• Straight type
• Colour black
• Full material Nylon 6
• Material flammability standard UL94 V-0
• Material Nylon

Stacking Pillar

EFA04-53-ASS

• Stacking Pillar type
• Colour black
• Full material Nylon 6
• Material flammability standard UL94 V-0
• Material Nylon

Corner Fibre

EFA04-34-XXX

• Corner type
• Colour black
• Full material Nylon 6
• Material flammability standard UL 94 V-0
• Material Nylon

Standoff

EFA04-27-ASS

• Standoff type
• Colour black
• Full material Nylon 6
• Material flammability standard UL94 V-0
• Material Nylon

Fibre accessories

• Corner Guides - Manufactured from UL 94 VO@ 0.4mm flame-retardant nylon. Routes fiber through 90°. Maintains bend radius. Rivet or adhesive mountable.
• Straight Guides - Manufactured from UL 94 V0@ 0.4mm flame-retardant nylon. Controls fibre routing in straight line.
• Fibre reel stacking pillar – Manufactured from UL 94 V-O nylon and allows all types of reel to be stacked, simple mounting using single rivet or screw
• Fibre reel stand-off - Manufactured from UL 94 V-O nylon, universal mounting for all fibre reels, simple mounting using single rivet or screw
• Panel mounted strain relief boot - Manufactured from UL 94 V-O nylon, fits standard adapter D and eliminates need for adapters.

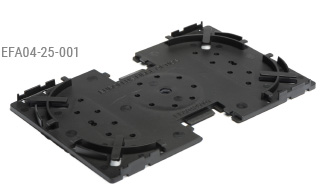

Array Trays

EFA04-25-001

These modular systems incorporate reels and clips in one simple application and are moulded in high temperature plastic. The trays hold, organise and protect spliced fibres from any damage.

• Manufactured from UL 94 VO@ 0.4mm flame-retardant nylon
• Incorporates the benefit of CMG's Fibre Reels and clips in one simple application
• Modular system using standard CMG clips
• Can be moulded in high temperature or conductive plastic where ESD-compliancy is a requirement

Receptacles

Available with a wide range of tolerances for single and multimode applications. Metal versions offer a more robust solution than plastic receptacles.

• Available in standard SC, FC and ST formats
• Bi-directional

Adapters

These are used to align fibre optic connectors. Metal adapters have tight tolerances and are available for single or multi-mode operation. Reusable bare fibre adapters are ideal for testing before terminating the cable. All types come with a range of mountings.

• Connector Dust Caps
• Metal & Plastic

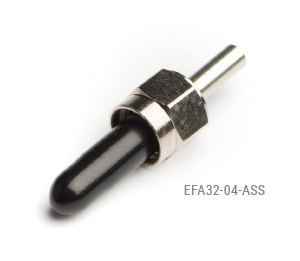

FC PM Connector ‘R’ Type (Narrow Key)

EFA32-06-AXX

FC-PM and SMA (narrow and wide key) connectors are used to terminate the ends of optical fibres. They enable quicker connection and disconnection than splicing by mechanically coupling and aligning the cores of the fibres so light can pass through them.

• Supplied with boot

FC PM Connector ‘N’ Type (Wide Key)

EFA32-13-AXX

• Supplied with boot

SMA Connector

EFA32-XX-AXX

• Supplied with boot

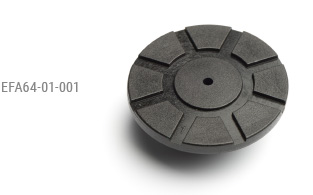

Plastic Polishing Puck

EFA64-XX-XXX

One of the last steps of fibre-optic connector installation is polishing and pucks help ensure a clean polish with a minimum of scratches on the fibre’s endface. The pucks are suitable for use with LC, MU (1.25mm) and ST, FC, DIN, SC (2.5mm) connectors and hold them in place so it is easier to apply pressure evenly while polishing.

Stainless Steel Polishing Puck

EFA60-XX-XXX

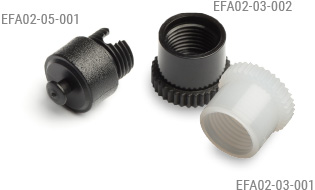

Fibre Dust Caps

EFA02-XX-XXX

Cleanliness is of paramount importance in fibre optics and, with the end of the smallest single-mode cable measuring just 5-10 microns (millionths of a metre), it is very easy for the smallest speck of dirt to block the optical signal. The caps are available as single use or reusable; in metal or plastic; and a wide range of colours.

• Meets standard connector types SMA, DIN, FC, ST and SC.
• Available in single or reusable form
• Metal or plastic caps

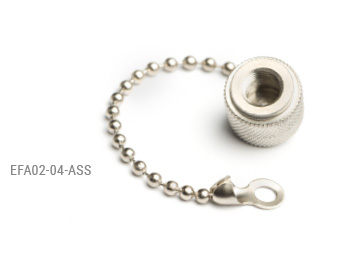

Dust Caps with Chain

EFA02-XX-XXXX

• Cap Type SMA
• Colour Silver
• Material Stainless Steel
• Includes (All) Chain
• Styles 2
• Full Material Stainless Steel
